Perusing the Parts List
Here’s your shopping list for building your
Couch Pet-ato. This project involves the following parts,

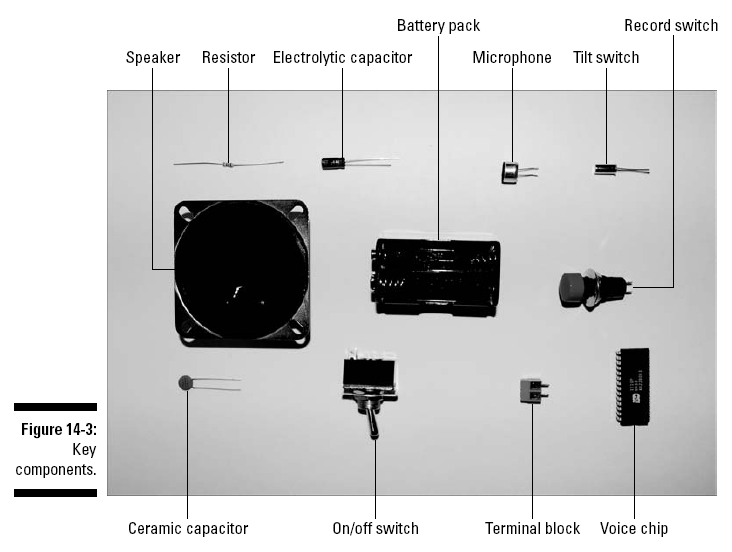

several of which are shown in Figure 14-3:
Signal Systems 3004 tilt/motion sensor
Many vibration (also called
tilt
or
motion)
sensors are available; we used
cost and pin type as our criteria. We found this
sensor at Jameco (
www.
jameco.com
),
and Mouser (www.mouser.com)
carries a similar lowcost
sensor. We chose this one because it doesn’t use
a surface-mount
package, which is harder to work with.
16 ohm, 0.2 watt speaker
Electret microphone part #EM-99
We found this one at Jameco. You can use other
electret microphones;
see Chapter 3 for the criteria to help you
choose one. If you use another
model of microphone, you might have to adjust R3
to get the supply
voltage to the correct level.
Winbond Electronics ISD1110 voice record/playback chip (IC1)
0.01 microfarad capacitor (C1)
0.1 microfarad capacitor (C3)
4.7 microfarad electrolytic capacitor (C2)
Four 5⁄8"
6-32 screws
Four 6-32 nuts
Three wire clips
5.1 kohm resistor (R1)
470 kohm resistor (R2)
2.2 kohm resistor (R3)
NO (normally open) momentary pushbutton switch (S1)
Breadboard (830 contacts)
SPST toggle switch (S2)
Four pack of AA batteries with snap connector
Four 2-pin terminal blocks
Enclosure
We use a wooden box 8" x 5
1⁄4"
x 31⁄4",
with latches and clasp.
Velcro
An assortment of different lengths of prestripped short 22 AWG
wire
